Warning

This project has been sunset and isn't being actively worked on anymore. The previously deployed services (query API, UI, discord bot) have been shut down. So the corresponding links (anonklub.xyz, docs.anonklub.xyz, query.anonklub.xyz) in docs/README(s) won't work.

AnonKlub focuses on building applications that allow for secure and anonymous proof of membership. It does so by performing both ECDSA signatures and Merkle Tree inclusion verifications in a SNARK. It enables privacy applications such as anonymous airdrops, anonymous NFT minting, anonymous chat groups…

Content	Description	Status
discord-bot	Discord Verification Bot	✔️
nullifier		📆 TO DO
pkgs/cli	Rust CLI	⏳
pkgs/halo2-binary-merkle-tree	Binary merkle tree rust implmentation with a Halo2 gadget for merkle proof verification	✔️
pkgs/halo2-binary-merkle-tree-worker	Web worker that runs the Wasm compilation of pkgs/halo2-binary-merkle-tree	✔️
pkgs/halo2-eth-membership	Halo2 ECDSA circuit	✔️
pkgs/halo2-eth-membership-worker	Web worker that runs the Wasm compilation of pkgs/halo2-eth-membership	✔️
pkgs/merkle-tree-wasm	Merkle tree Rust crate & corresponding wasm TS package	✔️
pkgs/merkle-tree-worker	Web worker wrapper of the @anonklub/merkle-tree-wasm wasm package	✔️
pkgs/query	Node package wrapper for the Query API	✔️
pkgs/proof	Node package to assist in creating proof requests	✔️
pkgs/spartan-ecdsa-wasm	Spartan/Sapir circuits & corresponding wasm TS package.	✔️
pkgs/spartan-ecdsa-worker	Web worker wrapper of the @anonklub/spartan wasm package	✔️
queries/crypto_ethereum	Google bigquery-public-data.crypto_ethereum queries examples	✔️
queries/dune_analytics	Dune Analytics queries examples	✔️
queries/the_graph	The Graph queries examples	✔️
query-api	Query API server	✔️
ui	User Interface (fetch anonymity sets, generate or verify membership proofs)	✔️

Archive branches

• circom/snarkjs (groth16) implementation: archive/circom
• spartan-ecdsa/sapir implementation: archive/spartan-sapir

Develop

TLDR

git clone https://github.com/anonklub/anonklub.git
cd anonklub
cp .envrc{.example,}
# edit .envrc
source .envrc
pnpm i
pnpm start.ui

Requirements

Environment

See .envrc.example.
Copy it in an .envrc file and source it.

cp .envrc{.example,}
# edit .envrc
source .envrc

Scripts

Check available scripts with pnpm run.
Especially, to start the ui or the query-api: pnpm start.ui or pnpm start.query-api.
Don't bother running build tasks explicitly beforehand: turbo takes care of topological dependencies between tasks.

Benchmarks

Overview

This benchmarking process evaluates the relationship between the parameter k and the performance metrics such as a proof generation time, proof size, and verification time. The results are stored in a CSV file and visualized using plots.

Setup

Before running the benchmarks, ensure that your Rust environment is set up correctly and that the appropriate target is configured.

Configuring the Rust Target

This benchmarking process is intended to run on a native Linux target, not on WebAssembly (WASM). The project uses a specific Rust toolchain version.

1. Set Up the Rust Toolchain: Ensure to use the same nightly Rust version in the rust-toolchain.

[toolchain]
channel = "nightly-2024-07-25"

2. Check the Installed Targets: You can check which targets are installed in your Rust toolchain with:

rustup target list --installed

3. Add the Required Target: If the x86_64-unknown-linux-gnu target is not installed, you can add it with:

rustup target add x86_64-unknown-linux-gnu

4. Run the Benchmark: Ensure that the benchmark is run with the correct target by using the following command:

cargo test --target x86_64-unknown-linux-gnu --features "bench"

Results

The benchmark results were obtained on Lenovo Legion 5 running Linux (12 CPU cores, 62 GB RAM) -- no GPU was used.

k	numAdvice	numLookupAdvice	numInstance	numLookupBits	numVirtualInstance	proof_time	proof_size	verify_time
19	1	1	1	18	1	176.9s	992	2.3s
18	2	1	1	17	1	171.1s	1504	7.6s
17	4	1	1	16	1	71.7s	2080	639.7ms
16	8	2	1	15	1	59.3s	3584	365.1ms
15	17	3	1	14	1	51.2s	6592	267.6ms
14	34	6	1	13	1	51.6s	12736	283.8ms
13	68	12	1	12	1	52.5s	25024	411.5ms
12	139	24	1	11	1	58.3s	50528	761.7ms
11	291	53	1	10	1	72.4s	106304	1.5s

Note: those benchmark config parameters have been selected based on halo2-lib benchmark params github.com/axiom-crypto/halo2-lib

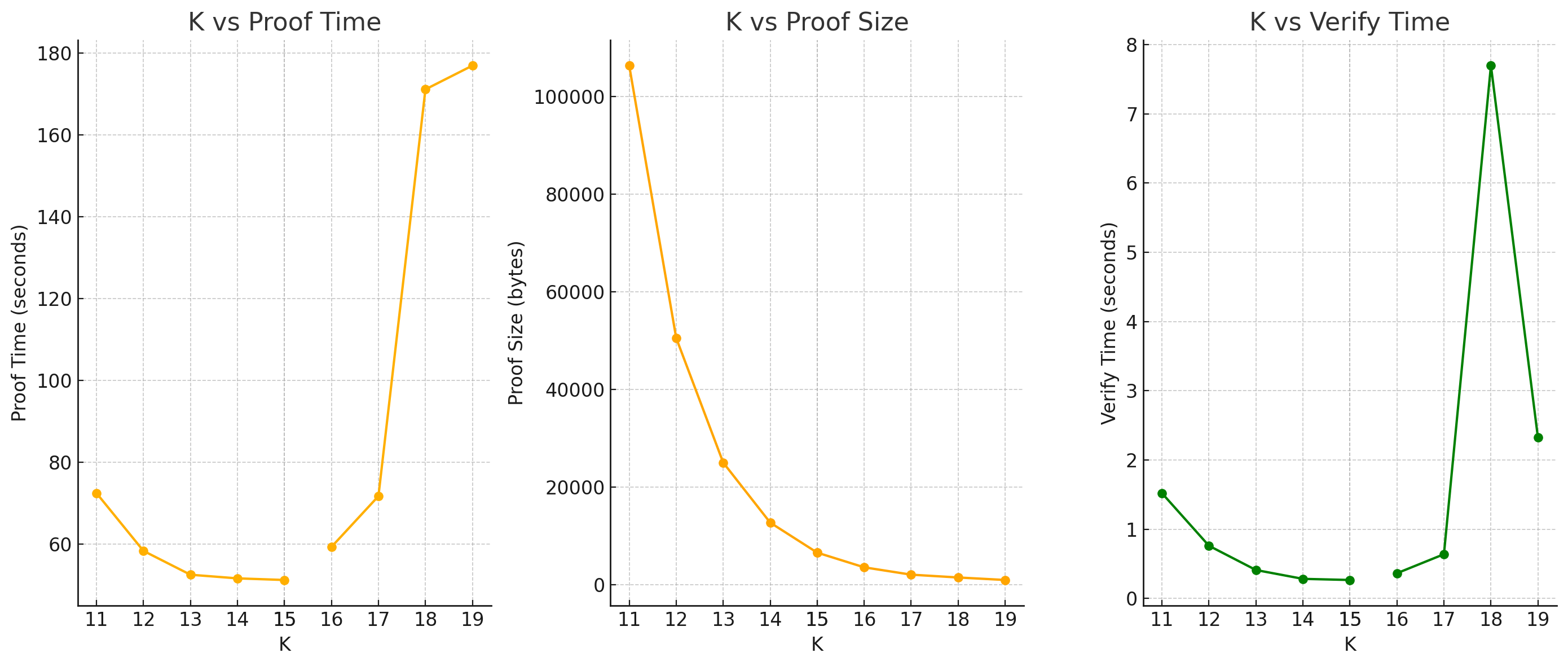

The benchmark results are visualized in the plot below:

Results using criterion.rs

TODO
